NEO15006DSP - 1500W RMS Class D 6-Channel Amplifier with 8CH DSP

Extensive System Power Meets Precision Control

The Diamond Audio NEO15006DSP is the ultimate solution for audiophiles seeking the perfect balance of multi-channel flexibility and sophisticated tuning with onboard 8CH DSP. As a high-efficiency Class D 6-Channel amplifier, it delivers a massive 1500W RMS total output. 150W RMS x 6 @ 4Ω or 250W RMS x 6 @ 2Ω, providing the dependable strength needed to drive complete active systems or high-output multi-speaker setups, with the ability to bridge channels to 500W x 3 @ 4Ω —all while maintaining the pure sonic clarity Diamond Audio is known for.

Advanced Full DSP Integration

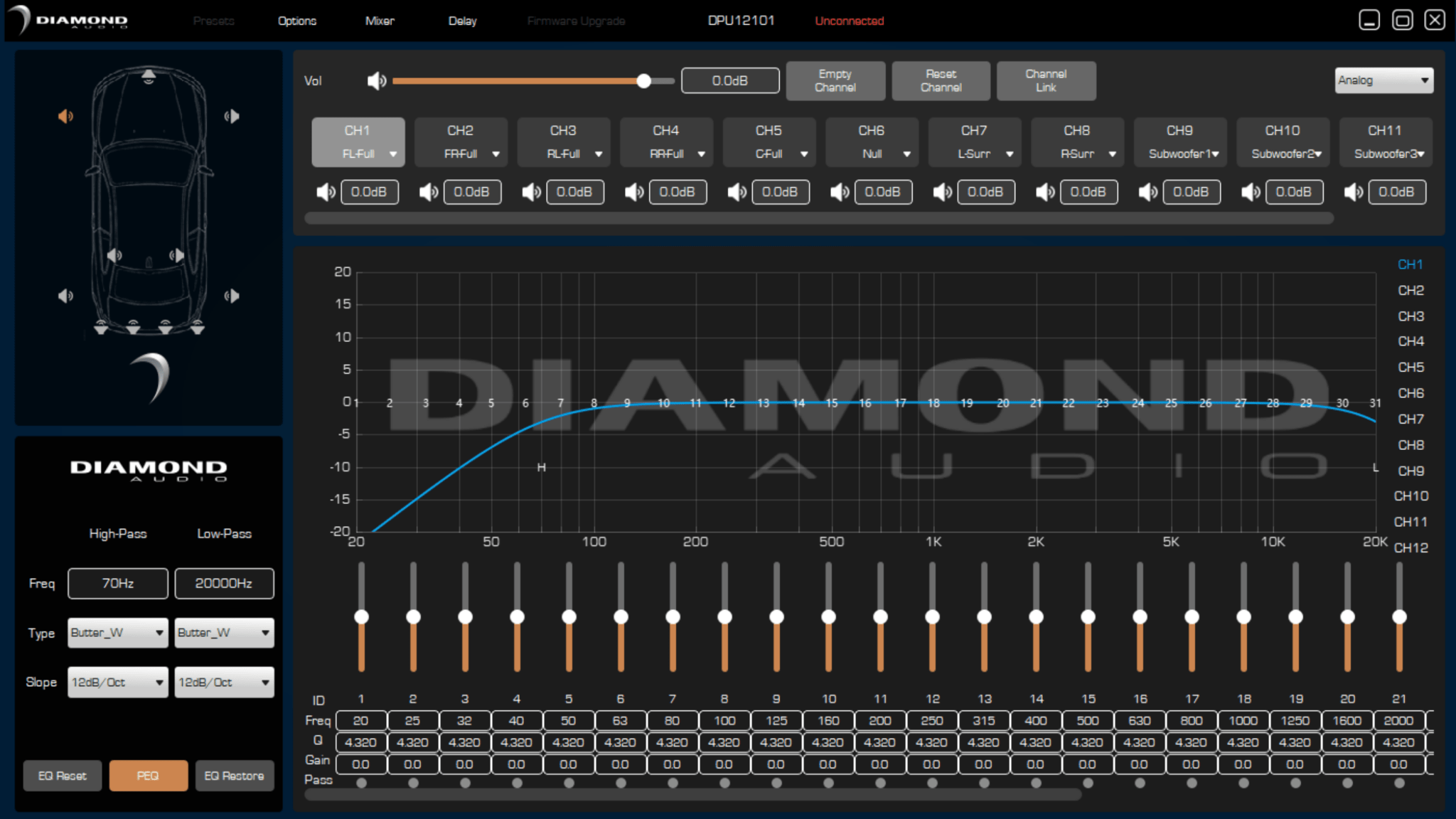

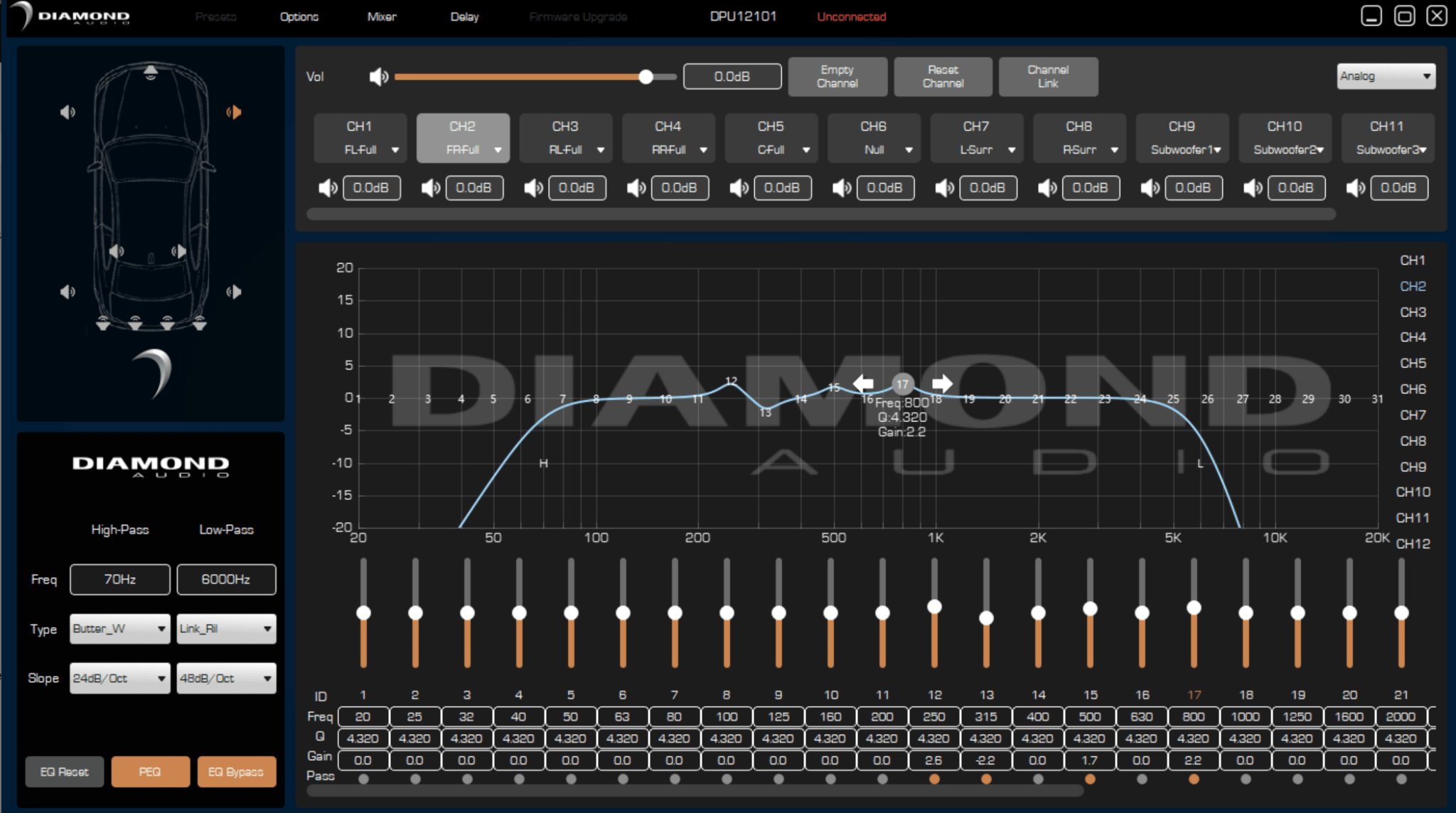

Unlike standard multi-channel amplifiers, the NEO15006DSP features an integrated, full-service Digital Signal Processor . With 31 bands of parametric EQ per channel , precise crossovers, time delay , and channel linking, you have total command over every aspect of your soundstage. Whether you are tuning via PC or Android , the NEO Series provides a professional-grade interface to meticulously calibrate complex 6-channel configurations for any acoustic environment.

Seamless OEM & EV Integration

Designed for the modern vehicle landscape, the NEO15006DSP excels in integration. It features high-voltage signal inputs (up to 20V) and selectable on-board load resistors (10Ω - 20kΩ) to interface perfectly with complex factory (OEM) systems . Furthermore, its EV-friendly voltage compatibility (8-17V) ensures stable performance in electric and hybrid vehicles without compromising the vehicle’s electrical integrity.

Versatile & Rugged Engineering

Built to perform in diverse environments, the NEO15006DSP features a marine-ready, water-resistant chassis , making it an ideal choice for high-end car audio, marine, and powersports installations . Despite its expanded 6-channel capability , the compact footprint , staggered RCA connections, and high-current quick-connect power blocks ensure a clean, professional installation in any high-performance audio setup.

App Control & Bluetooth Streaming

The NEO15006DSP comes equipped with built-in Bluetooth streaming, enabling seamless wireless audio playback alongside its studio-grade DSP performance. Looking ahead, a dedicated companion app is coming soon, which will bring wireless control and monitoring of your amplifier directly to your smartphone—adding an extra layer of smart, connected convenience to the NEO Series experience.

Key Features:

• Full 8CH DSP integration: 6CH internal, 2CH output. 31 band parametric EQS per channel, crossovers, time delay, channel linking, PC or Android programming for advanced tuning and much more
• Easy OEM integration features:
  • Up to 20V signal inputs (High/Low level 20V – 0.4V)
  • Selectable on-board load resistors (10Ω, 20Ω, 60Ω, 20kΩ)
  • EV friendly voltage compatibility (8V – 17V)
• Bluetooth Audio streaming direct to amplifier

• Control via IOS or Android App (coming soon)
• Marine ready, water-resistant chassis

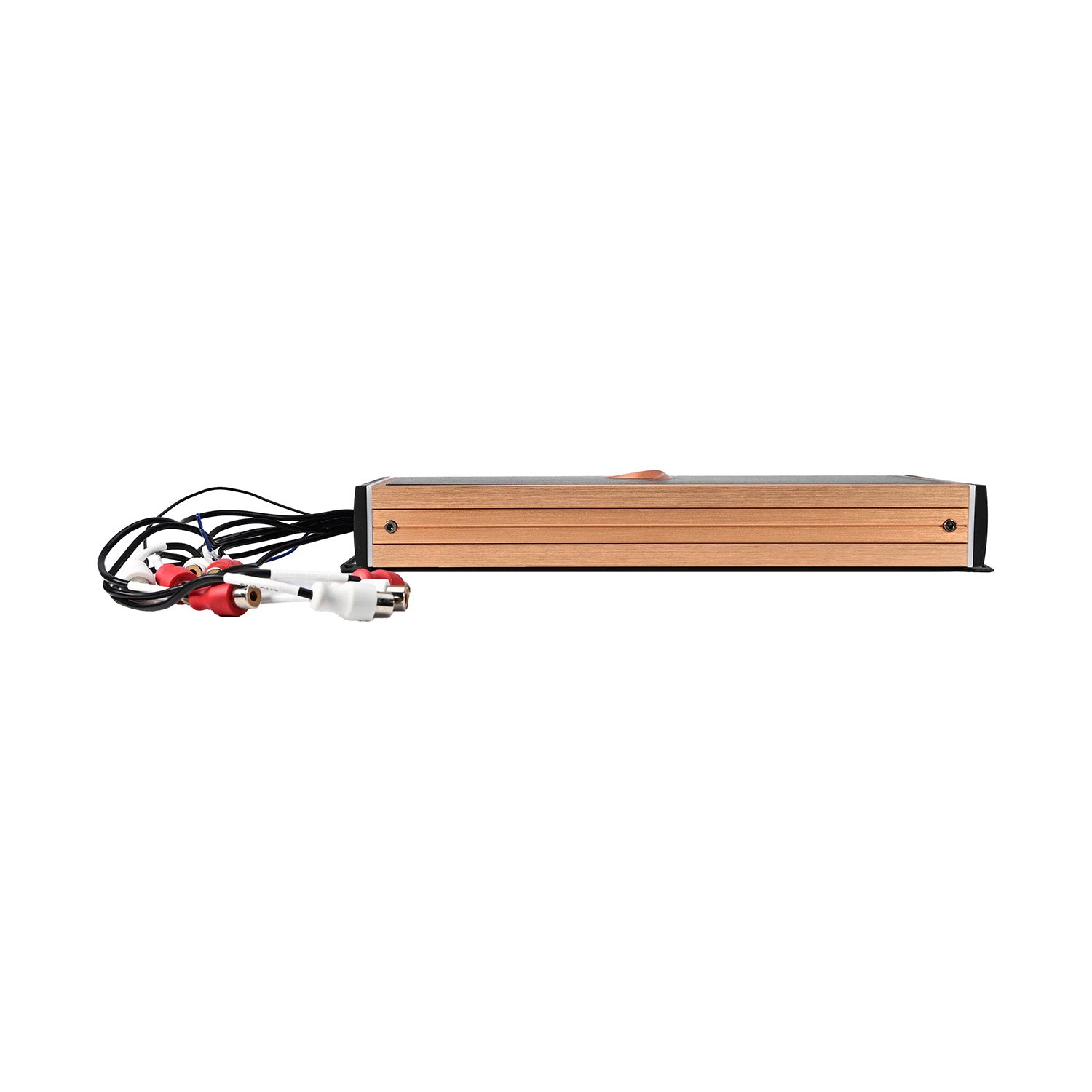

• Staggered RCA connections for clean installations

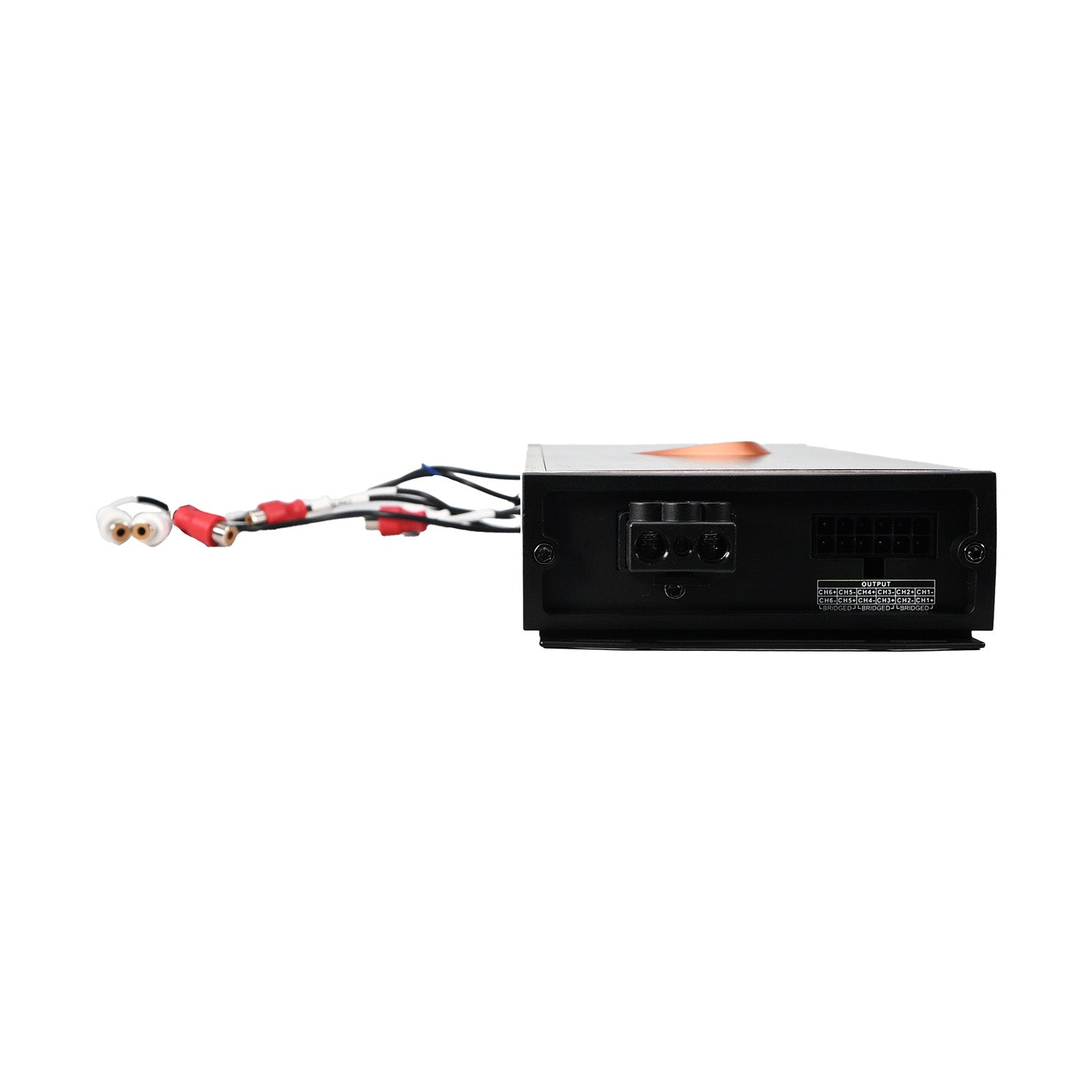

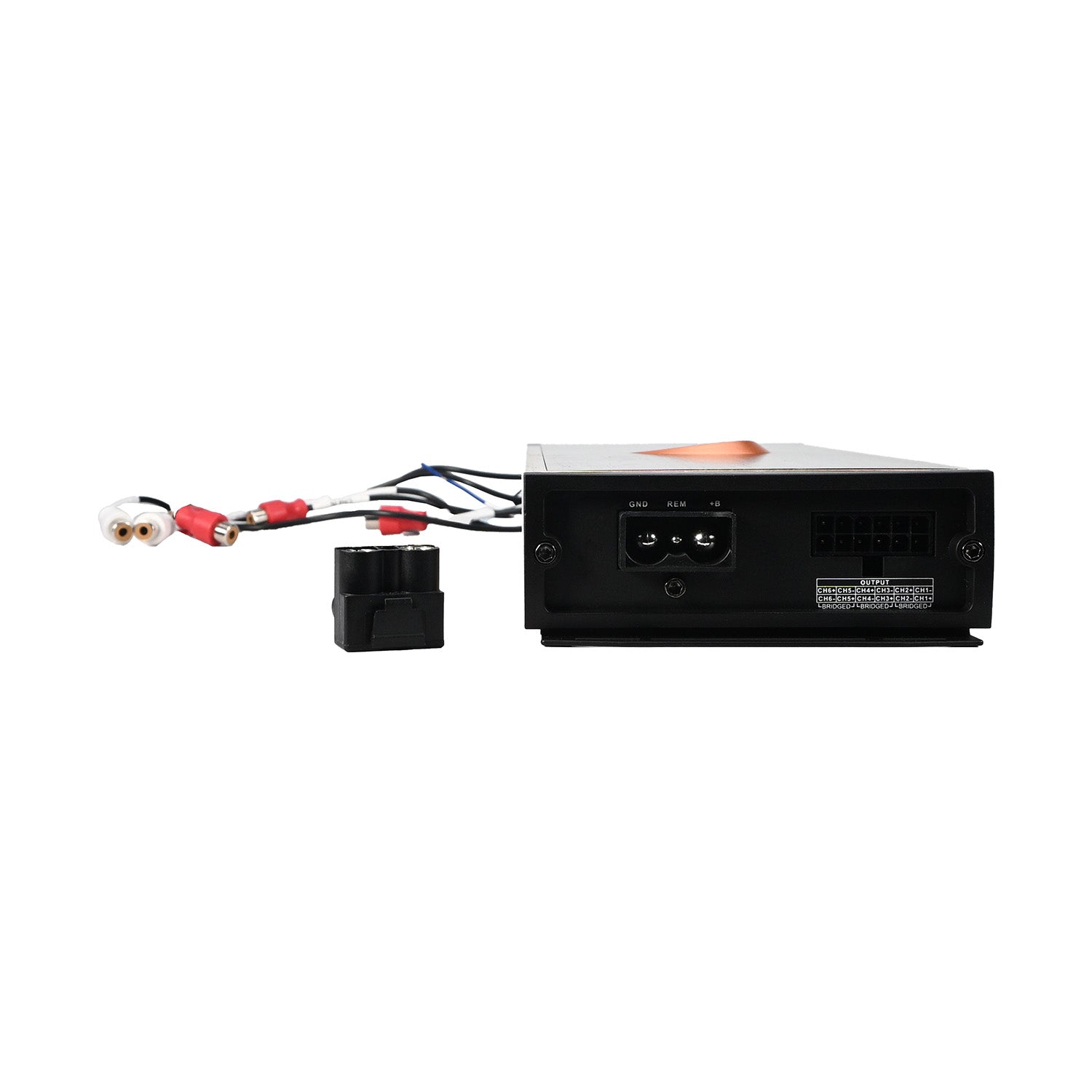

• High-current quick-connect power block
• NeoDRC1 Diamond Remote Commander compatible (sold separately)
• 2 RCA preamp outputs for system expansion
• Ultra-low distortion (0.05% THD)



  PC SOFTWARE DOWNLOAD

  ANDROID APP DOWNLOAD



• TECH NOTE: POWER UP AMPLIFIER FOR PROGRAMMING- SELECT ACC POSITION FOR AUTO TURN-ON

• Amplifier Power Calculator

  Measured Output Power - Match gain to either RMS output of the amplifier or the speaker, whichever is lower.

  Enter measured AC voltage:

  Load	Power (Watts)
  4Ω	0 W
  2Ω	0 W
  1Ω	0 W

  Formula: Watts = Voltage² ÷ Resistance

  Voltage Target Calculator - Match gain to either RMS output of the amplifier or the speaker, whichever is lower.

  Enter desired output power:

  Load	Target Voltage
  4Ω	0 V
  2Ω	0 V
  1Ω	0 V

  Formula: Voltage = √(Watts × Resistance)
