| Product Features: |
| Operates at a Dynamic Power Peak of 1200 Watts for high performance audio |
| Class AB Design reduces the amount of sound distortion and retains high energy efficiency while doing so |
| Bridgeable design of your amplifier allows you to connect your subwoofer to give it an extra boost of power |
| Offers bass boosting to give you more of a kick out of your subwoofer (0, 6, 12dB) |
| Variable high pass and variable low pass and full range settings to provide you with a wide selection of preferences and choices |

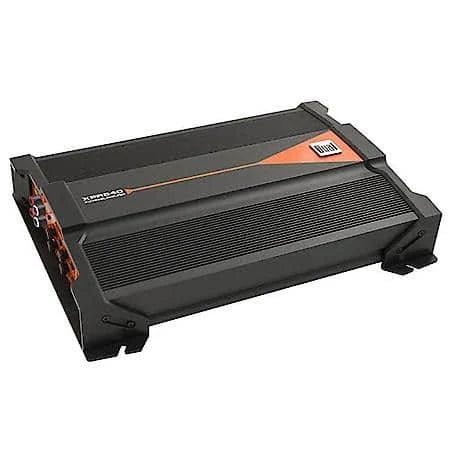

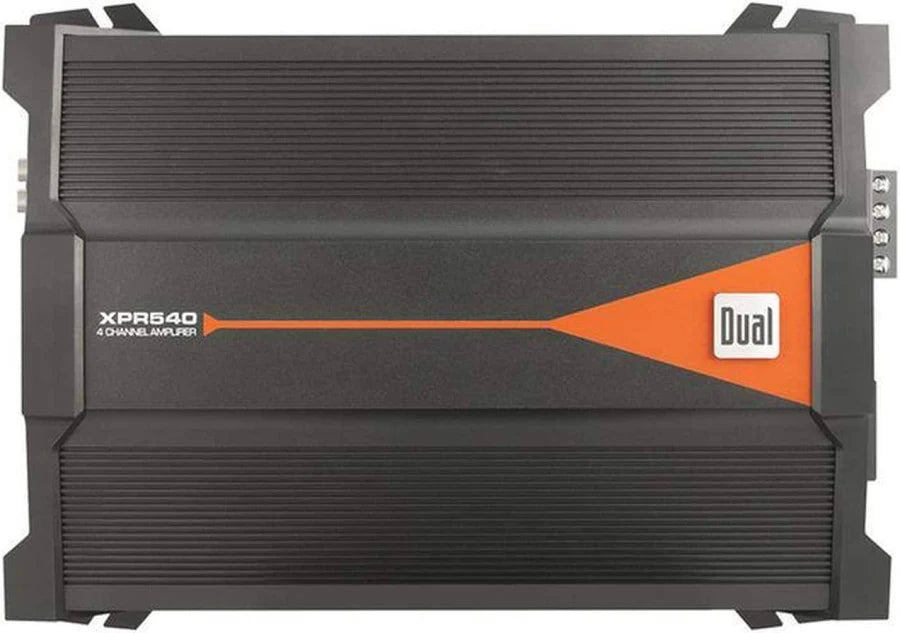

| MOSFET Power Supply and Stable Stereo Operation features are included in your Dual Electronics XPR540 Amplifier to help extend its lifespan and operate at a higher efficiency |

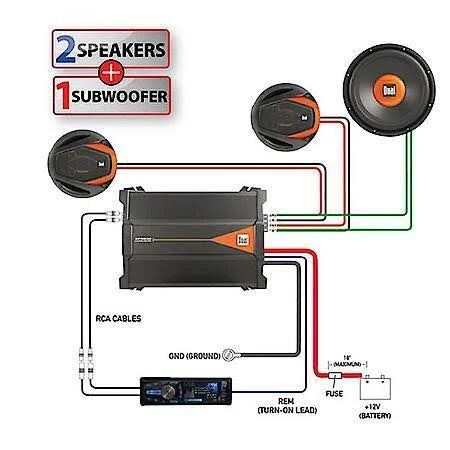

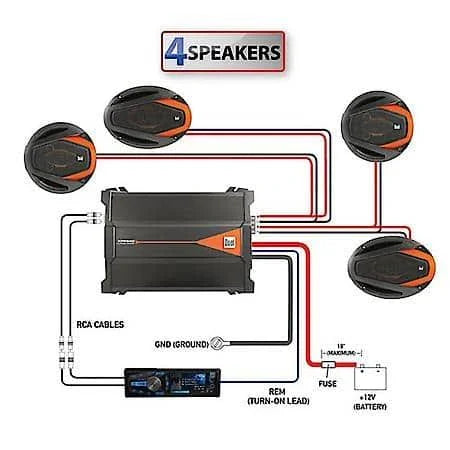

| 4 Channel Design that is ideal for powering 4 speakers or 2 subwoofers or a subwoofer and 2 speakers |
| Low and high level inputs |
| Variable gain adjustment (200mV ~ 6V) |
| Selectable crossover (high pass/low pass/full range) |
| Signal to noise ratio: 75dBA (reference: 1 Watt into 4 ohms) |
| Frequency response: 20Hz ~ 20kHz |
| Amplifier dimensions: 2.76" (H) x13.82" (W) x 10.55" (D) |
| Typical installation dimensions: 3.75"(H) x 15.00" (W) x 11.5" (D) |
|
| This receiver is specially designed with a slim build to fit various dash openings and a shallow 5.1in (130mm) chassis that helps make installation easy and efficient! |
|
| iPlug Smart Remote App |
|
| Use the Dual iPlug Smart Remote app on an Apple® or Android™ smartphone to control the receiver via Bluetooth. |
|
| Change the mode, station, song, volume, and settings directly from your smartphone without being in the receiver’s line-of-sight. |
|
| 200 Watts (50 Watts x 4) |
|
| Built-in Bluetooth® for hands-free calling, audio streaming, and player control. Built-in microphone. |
|
| Easy access voice activation button to activate Siri® or the Google Assistant™ on your phone. |
|
| Dual Smart Remote App via Bluetooth® (Apple®/Android™)AM/FM Receiver with 30 Station presets (18FM/12AM) |
|
| Front panel USB input |
|
| Front panel 3.5mm AUX input |
|
| 7 Character LCD |
|
| MP3 playback |
|
| 1 Pair of RCA pre amp outputs (Front or Rear) |
|
| 2 Band tone control (Bass/Treble) |
|
| 4 Preset EQ curves (Classic, Rock, Pop, Flat) |
|
| Very shallow mount design for easy installation |
|
|
Playback - Digital Audio
|
|
|
Mounting Size - Single Din
|
|
|
Phone Connectivity - Bluetooth
|
|
|
Inputs - 3.5mm, USB
|
|
| Amplifier Outputs - 1 Pair (Rear) |
|
|
Peak Power Output - 200W (50W x 4)
|
|
| Bluetooth Features - Audio Streaming, Hands-free Calling, Internal Microphone, Voice Activation Button |
|
|
Inputs - All 3.5mm (Front), USB (Front)
|
|
|
File Playback - MP3
|
|
|
LCD - 7 Character
|
|
|
Preamp Outputs1 Pair (Rear)
|
|
|
Front Panel Fixed Faceplate
|
|
|
Illumination - Blue
|
|
| Audio Processing - 2 Band Tone Control, 4 EQ Presets |
|
| Chassis Depth - Slim Mount (2.3") |
|
|
Wireless Remote - iPlug Smart Remote App
|
|
| AM/FM Receiver - 30 Station presets (18FM/12AM) |
